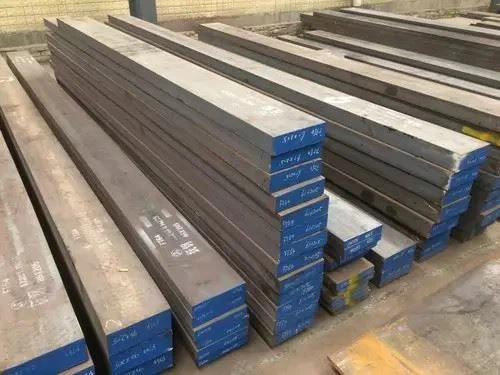

1.2550 6CrW2Si Tool Steel Plate
Type:Plate/Round bar/Flat bar
Delivery condition: Annealed black surface/Turned bright surface
Products Description
6CrW2Si/1.2550 steel is a steel grade formed by adding a certain amount of tungsten on the basis of chromium silicon steel, because tungsten helps to preserve the finer grains during quenching, and obtains higher toughness in the tempered state.
1. Adding some tungsten into chromium silicon steel.
2. Keeping fine grain when quenching by adding tungsten
3. Obtaining good ductility when quenching
4.More temperature strength and hardenability than 4CrW2Si and 5CrW2Si
①Suitable for low-deformation steel and Cr12 series steel that are made of carbon steel with insufficient load-bearing capacity,
and are made of oil-quenched steel, which are prone to brittleness, but are made of high-speed steel or high-strength steel, and
are uneconomical and high-wear molds.
②This steel can be used when the main failure mode is wear and collapse.
③Suitable for manufacturing scissors, slicing punches, etc.
④It can be used for punching dies, press dies, casting finishing tools, pneumatic chisels, etc. that work under heavy loads.
⑤As a hot processing steel, it can produce screws and hot riveting punches.
⑥High temperature die-cast light alloy head.
⑦Hot forging die, etc.
Products parameters
| GB | W.Nr/DIN | French NF | Russian |
| 6CrW2Si | 1.2550/60WCrv7 | 55wc20 | r0cT |
|
Standard |
C |
Si |
Mn |
Cr |
W |
P |
S |
|
GB/T 1299-2000 |
0.55/ 0.65 |
0.50/ 0.80 |
≤ 0.40 |
1.00/ 1.30 |
2.20/ 2.70 |
≤ 0.030 |
≤ 0.030 |
Produce Size
|
Round |
Diameter |
Length |
|
|
50mm-500mm |
2000mm-5800mm |
||
|
Steel plate |
Thickness |
Width |
Length |
|
20-400mm |
80-1000mm |
2000mm-5800mm |
|
|
Delivery condition
|
cold drawn, quenchen and tempered, centerless grinding
|
|
Processing Service
|
Cold drawn,Grinding,Peeling,Heat treat ment
|
|
Surface treatment
|
Black, Grinded, Peeled, Rough turned, Polished
|
|
Diameter
|
2-90 mm (tolerance ISO h7,h8,h9)
|
|
Application
|
cold die,blanking die,punches and variour molding tools
|
|
Delivery hardness
|
quenched & tempered 58-62HRC
|
|
annealed condition ≤255HB
|
|
|
Packing
|
Water proof packing
|

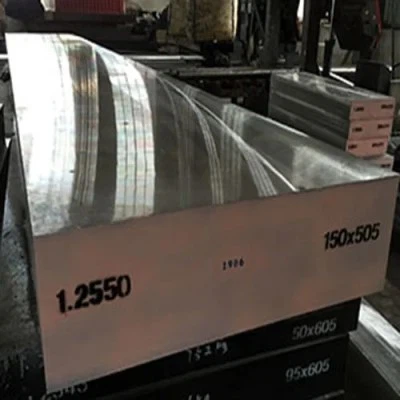

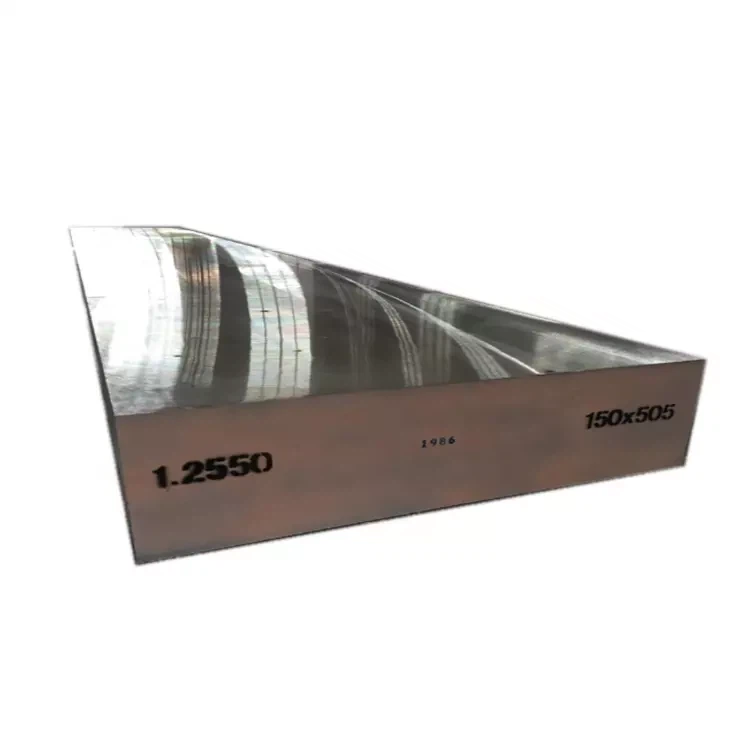

Product Picture
Our factory
Steel Making
Ingot Production

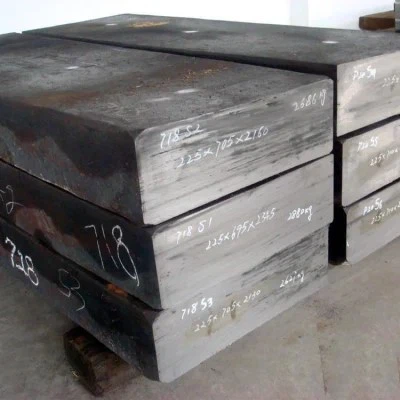

Forged Plate
Machinary
Production Specifications
|
ROUND BARS
|
DIAMETER 1.5-500MM
|
|
SHEETS
|
THICKNESS 0.5-10MM
|
|
PLATES
|
THICKNESS 12-300MM
|
|
DIE BLOCK
|
THICKNESS 310-600MM
|
Mechanical properties of 1.2550 steel
Hardness: Annealing, 285~229HB, indentation diameter 3.6~4.0mm; quenching, ≥57HRC
1.2550 steel heat treatment specification and metallographic structure
Heat treatment specification: sample quenching 860~900℃, oil cooling.
|
Annealing |
≤600°C , air cooling |
|
Hot treatment quench |
860-900°C oil cooling ≥57HRC |
|
Backfire |
200-250°C air cooling HRC: 53-58 |
|
|
430-470°C air cooling HRC: 45-58 |
Delivery status of 1.2550 steel:
The steel is delivered in an annealed condition.

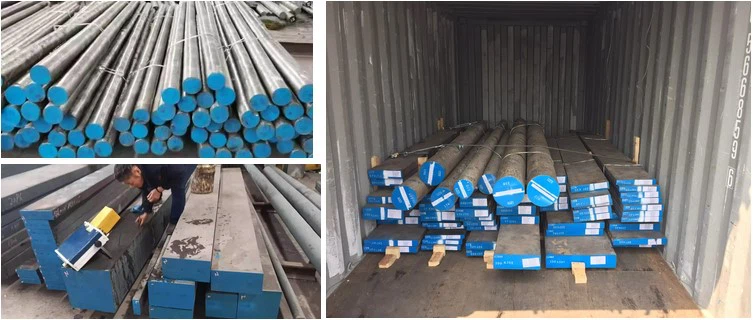

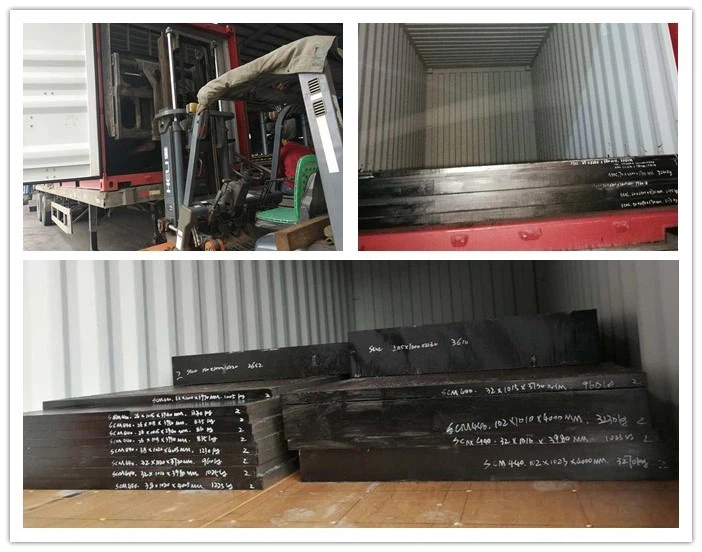

Packing and delivery
Our Service
Payment terms:
-
T/T 30% deposit and the 70% balance after finished production.
-
Delivery condition:
-
For abundant stock, 7-10 days.
-
For customized products, 30-40 days
Delivery condition
1. Hot forged bar, usually the delivery condition is hot forged, annealed/QT rough turned/Black surface.
2. Hot rolled bar, usually the delivery condition is hot rolled, annealed/QT, Black surface.
3. Hot forged plate, usually the delivery condition is hot forged, annealed/QT, milled surface.
4. Hot rolled plate, usually the delivery condition is hot rolled, annealed/QT, black surface.
